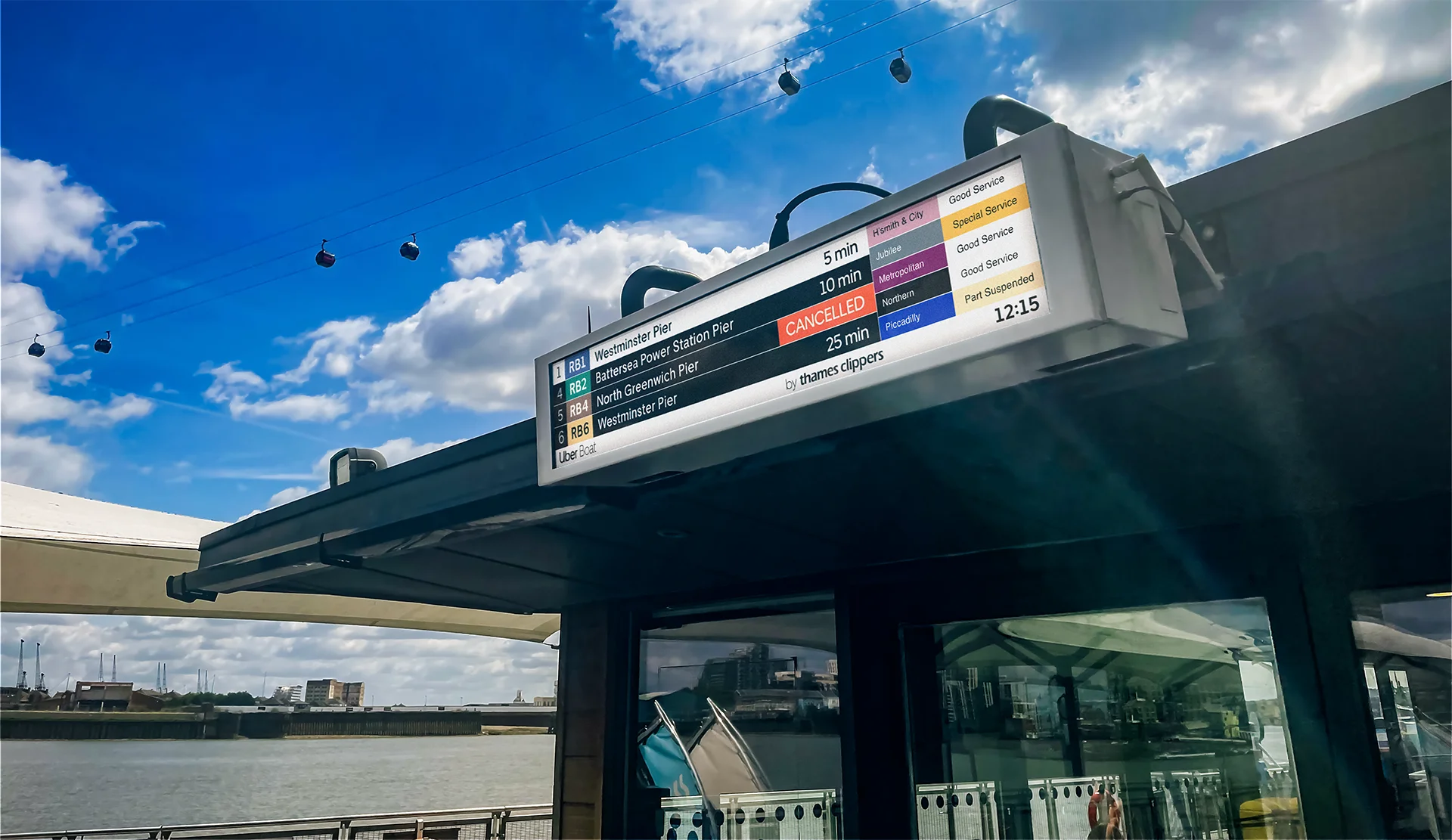

Outdoor Digital Displays
Navaho outdoor digital displays deliver real-time passenger information and high-impact commercial content in all weather conditions.
Engineered to withstand demanding environments - from busy city streets to harsh marine settings - these displays combine rugged hardware with intelligent software management.
Key Hardware Features
⚬ High Visibility: Ultra-bright 3000 nits panel ensures clear readability in direct sunlight. Built-in sensors automatically adjust brightness based on ambient light to save energy.
⚬ Optical Bonding & Anti-Reflection: Eliminates air gaps between the glass and LCD panel to minimise reflections, boost optical efficiency, and improve contrast.
⚬ Weatherproof Enclosure: Features an IP67-sealed, dustproof, and waterproof display module designed to perform reliably in extreme environments.
⚬ Vandal-Resistant Protection: Fitted with IK10-rated, laminated, low-iron tempered front glass and a heavy industrial powder-coated galvanised steel shell.
⚬ Maintenance-Free Cooling: Fanless design utilises a specialised heat sink cooling system to maintain safe operating temperatures (-15°C to +110°C) without physical air filters.
⚬ Slim Form Factor: Superslim 90mm enclosure depth available in single- or double-sided configurations.

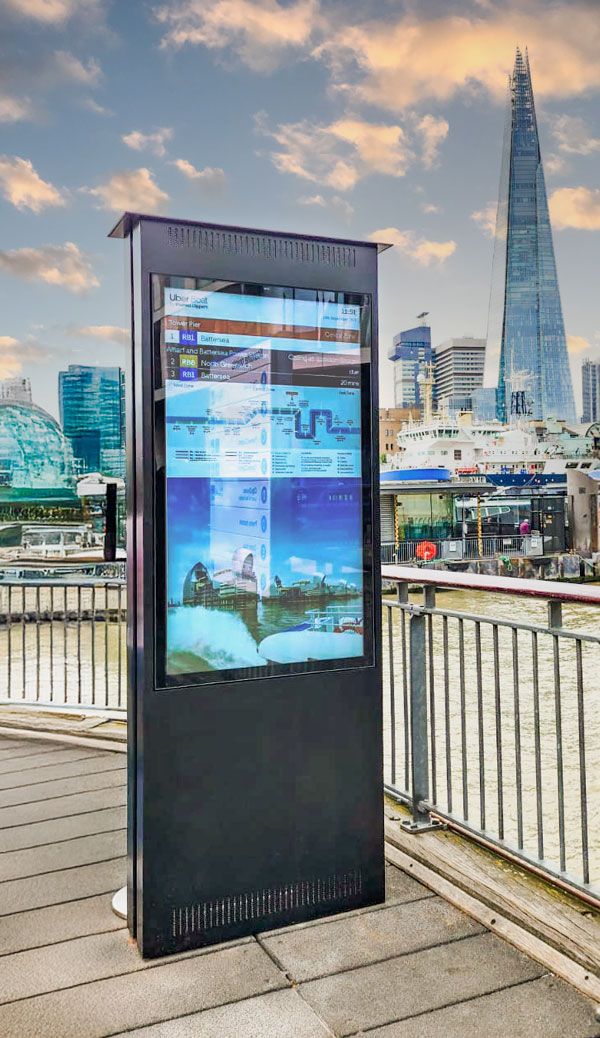

⚬ Flexible Mounting: Supports wall-mounted, open totem frame, or full totem housing installations.
Technical Specifications Overview
| Feature | Specification |
| Available Sizes | 32", 43", 49", 55", 65", 75", 86" |
| Resolution | Full HD 1920 × 1080 |
| Brightness | 3000 nits (with auto-brightness sensor) |
| Protection | IP67 module / IP65–IP67 outer shell, IK10 glass |
| Operating Temp | -15°C to +110°C (Heat sink system) |
| Audio Output | Built-in dual speakers (8W × 2) |
| Connectivity | USB, VGA, RJ45, Wi-Fi antenna support |
| Configuration | Single or double-sided display |
Software & Management Capabilities
⚬ InformALL™ CMS: Exclusive in-house software featuring custom-built OS architecture that bypasses off-the-shelf OS vulnerabilities for direct security updates and fast performance.
⚬ Over-the-Air Content Updates: Schedule and upload images, video, emergency notices, and live RSS feeds remotely via an online content portal.
⚬ Automatic Route Recognition: Integrates with vehicle tracking and GPS systems to deliver live destination updates, route ladders, and traffic information.
⚬ ScreenMetrics™ Monitoring: Proactive 24/7 screen health monitoring dashboard providing real-time fault alerts and analytics to minimise downtime.
⚬ Navaho Installer App: Simplifies commissioning and diagnostics for field technicians with step-by-step mobile instructions.
Ready to transform your outdoor digital signage environment?
Contact the Navaho team today to request a custom quote, schedule a live software demonstration, or discuss bespoke hardware configurations tailored to your project requirements.
